Mixing Matrix 8 In And 8 Out
KINGV-4MIX0808
KingV brand (KINGV) specializes in the production of high-definition mixing matrix with 8 inputs and 8 outputs, providing direct sales services to users, 4K HD mixing matrix with 8 inputs and 8 outputs, HD mixing matrix with 16 inputs and 16 outputs, HD mixing matrix with 40 inputs and 40 outputs, HD mixing The matrix is 80 in and 80 out, with stable quality, good compatibility, no snowflakes, no screen flickering, no water ripples, and no lag. Provide high-quality after-sales and technical support, lifetime maintenance, and competitive prices!
The high-definition hybrid matrix switcher has 8 inputs and 8 outputs, and can be customized within 8 channels. Input signal support: HDMI, DVI, VGA, VGA+audio, CVBS, Video, AV, SDI, etc. Output signal support: HDMI, HDMI+audio, DVI, VGA+audio, VGA, etc., supports high-definition resolution 800*600---1920* 1080_60Hz ---1920*1200_60Hz ---3840*2160_30Hz, support 4K. The resolution is backward compatible.

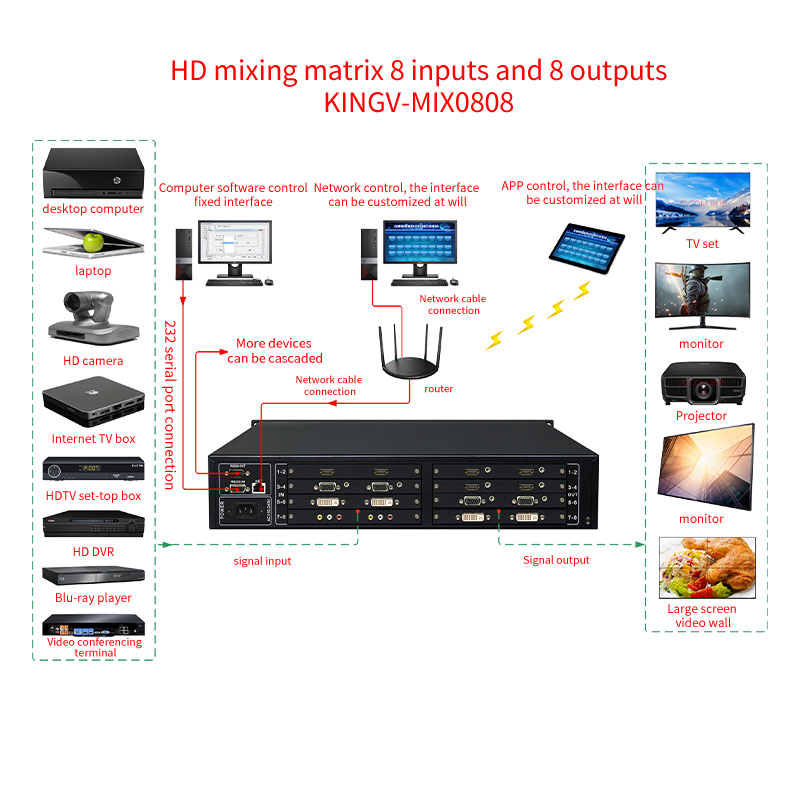

4K high definition mixing matrix 8 inputs and 8 outputs control method, model: KINGV-4MIX0808:
1. Button control: The buttons on the front panel of the device can control all actions of the matrix. (standard configuration)
2. Remote control: The equipment comes standard with a remote control, which can be used to control all actions of the matrix. (standard configuration)
3. PC software control: Install the matrix-specific management software on the computer, and you can fully control all actions of the matrix through the RS232 serial port. (standard configuration)
4. Network control: Install and run the dedicated matrix network management software on the computer, and you can fully control all actions of the matrix through the LAN. (optional)
5. APP control: Install the APP software on your tablet or mobile phone. The software can be customized and edited, and you can fully control all actions of the matrix through WIFI connection. (optional)
6. The underlying source program of the APP software is used on the computer: Run the underlying source program of the APP software on the computer. The software can be customized and edited, and all actions of the matrix can be fully controlled through the LAN. (optional)
7. Third-party control: The matrix can be controlled through other third-party equipment, such as central control, splicer, integrated control equipment, etc.
Functional features of 4K high-definition hybrid matrix with 8 inputs and 8 outputs:
1. Input and output: supports 8 channels of signal input and 8 channels of signal output. Supports cross switching of embedded multi-channel signals.
2. Input and output cards: Each board has 2 channels, and input boards in different formats can be configured as required.
3. Automatically read and save EDID, suitable for all brands of display devices.
4. Supports high-definition resolution 800*600---1920*1200_60Hz---3840*2160_30Hz, and supports 4K. Resolution is backward compatible.
6. All-metal chassis, high-bright blue LCD display.
7. Wide power supply 110-240V, dual serial port and network port settings.
8. Factory configuration control method: computer software control, button control, remote control control.
9. Both input and output have amplification functions. Using 24AWG standard cable, the 4K input transmission distance can reach 15 meters, and the output transmission distance can reach 15 meters.
Using 24AWG standard cable, the 1080P input transmission distance can reach 20 meters, and the output transmission distance can reach 20 meters.
10. Professional processor, FPGA programmable logic array circuit, more stable performance, faster running speed, and more stable system
11. High-definition 13.6GHz high-bandwidth chip, high-speed digital switching technology, clear images, solving crosstalk, ghosting and tailing phenomena.
12. Supports seamless integration of CMMAW technology and CCSEB power management technology.
13. EDID is automatically edited and the reading speed is fast.
14. Built-in cycle switching function, built-in 32 sets of scene storage functions, and can be operated directly on the panel.
15. Support audio formats DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-AC3/DSD.
16. Unique TCP/UDP network control and management function, which can be controlled through Ethernet. (optional)
17. Full chip SMD process, unique ESD electrostatic protection function.
18. Fault-tolerant technology is used in the design, and a communication interface circuit with high anti-interference ability is used to ensure the reliability of communication.
19. With infrared remote control function, RS232 communication function, network control function, and APP control function, users can easily complete signal switching during the demonstration process.
20. The product is equipped with on-site switching memory protection in case of power outage.
21. Vibration: ISTA 1A (International Safe Transport Association).
22. Comply with standards: CE/FCC Class A/VCCI/AS/NZS/ICES.

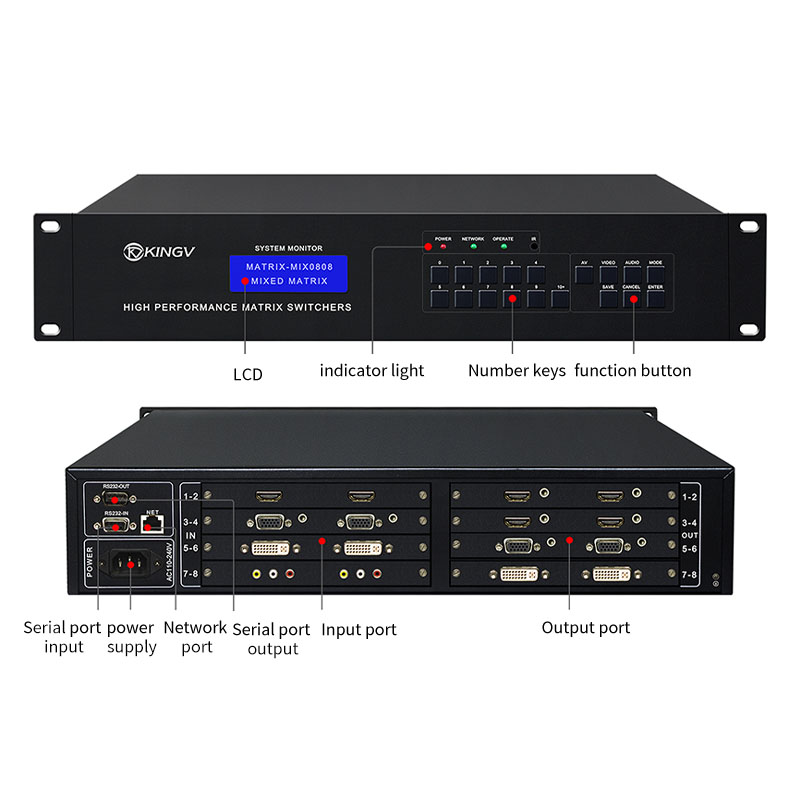

1. Acceptable input cards: 4 boards, each card has 2 channels, a total of 8 channels.
2. Acceptable output cards: 4 boards, each card has 2 channels, a total of 8 channels.
5. Host bandwidth: 13.6Gbps.
6. Serial control interface: RS-232, 9-pin female D-type interface.
7. Baud rate and protocol: Baud rate: 9600, data bits: 8 bits, stop bit: 1, no parity bit.
8. Serial control port structure: 2 = TX, 3 = RX, 5 = GND.
9. Ethernet control interface: RJ-45 female interface.
10. Ethernet control protocol: TCP/IP, UDP/IP.
11. Ethernet control rate: adaptive 10M/100M, full duplex or half duplex.
Specifications of 4K HD mixing matrix with 8 inputs and 8 outputs:
1. Power supply: 100VAC ~ 240VAC, 50/60 Hz, adaptive power supply.
2. Temperature: Storage and use temperature: -20°~+70°C.
3. Humidity: Storage and use humidity: 10% ~ 90%.
4. Power: 30W.

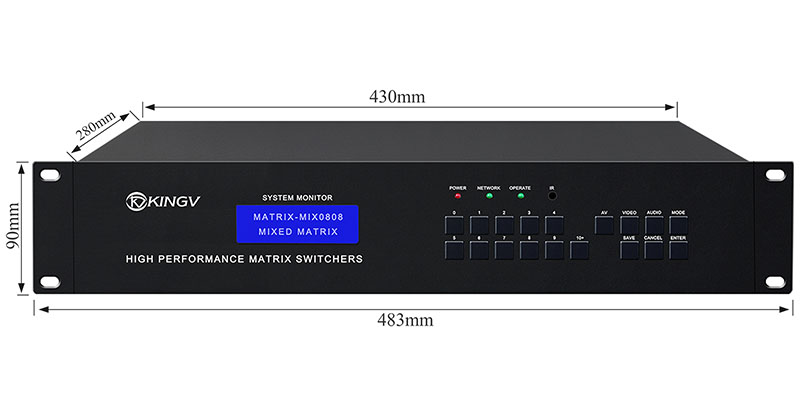

5. Chassis size (mm): 483mm (length) x 280mm (width) x 90mm (height).
6. Rack installation: 19 inches standard 2U height.
7. Product weight: 8.0kg.
