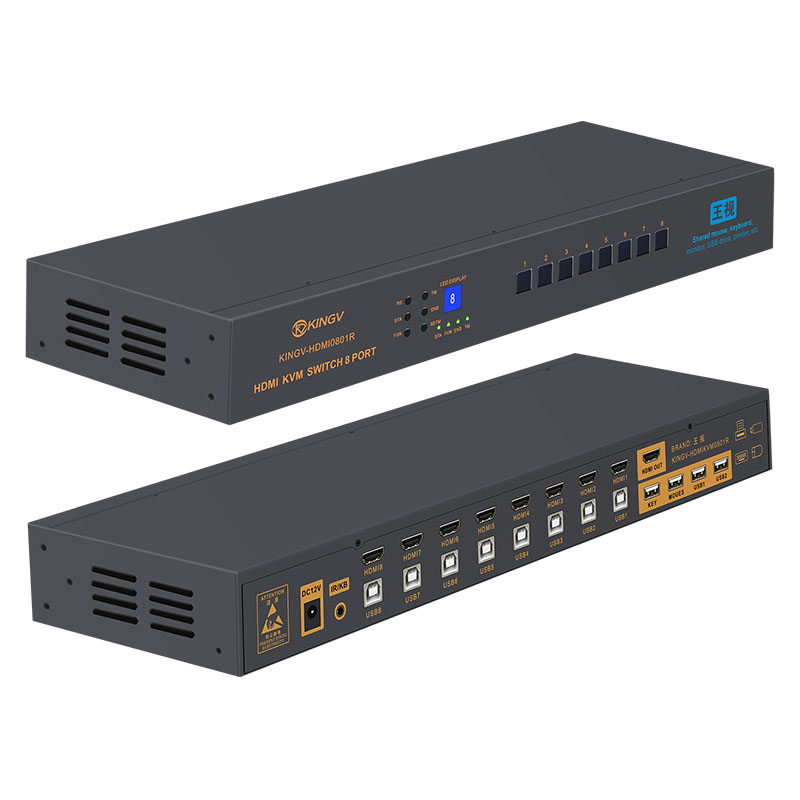

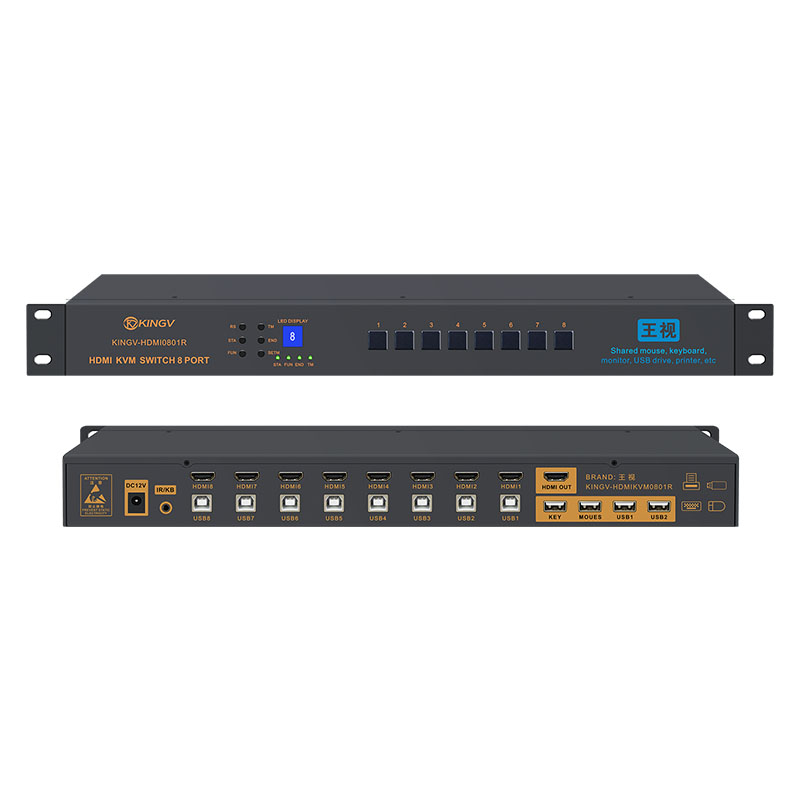

Kvm Switch Hdmi 8 In 1 Out

KINGV-HDMIKVM0801R
KingV brand (KINGV) specializes in the production of KVM switch manufacturers and provides users with direct sales services. KVM switch has 2 inputs and 1 output, KVM switch has 3 inputs and 1 output, KVM switch has 4 inputs and 1 output, and KVM switch has 5 inputs and 1 output. , KVM switch with 6 inputs and 1, KVM switch with 8 inputs and 1, HDMI switch with 9 inputs and 1 output, 16 inputs and 1 output, 25 inputs and 1 output, 32 inputs and 1 output, etc. The quality is stable, the compatibility is good, no snowflakes, no flickering screen, no water ripples, no lag. Provide high-quality after-sales and technical support, lifetime maintenance, and competitive prices!
KVM switches can control connected servers or computers from a local console. This KVM switch features a local console, cascading, on-screen menu, remote control, external keyboard control, and button control.

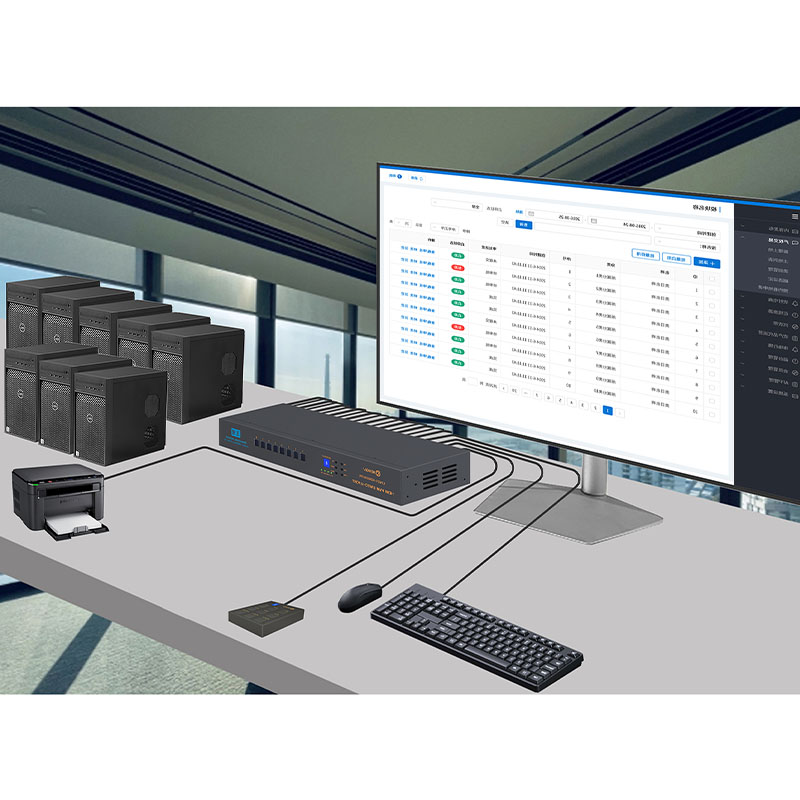

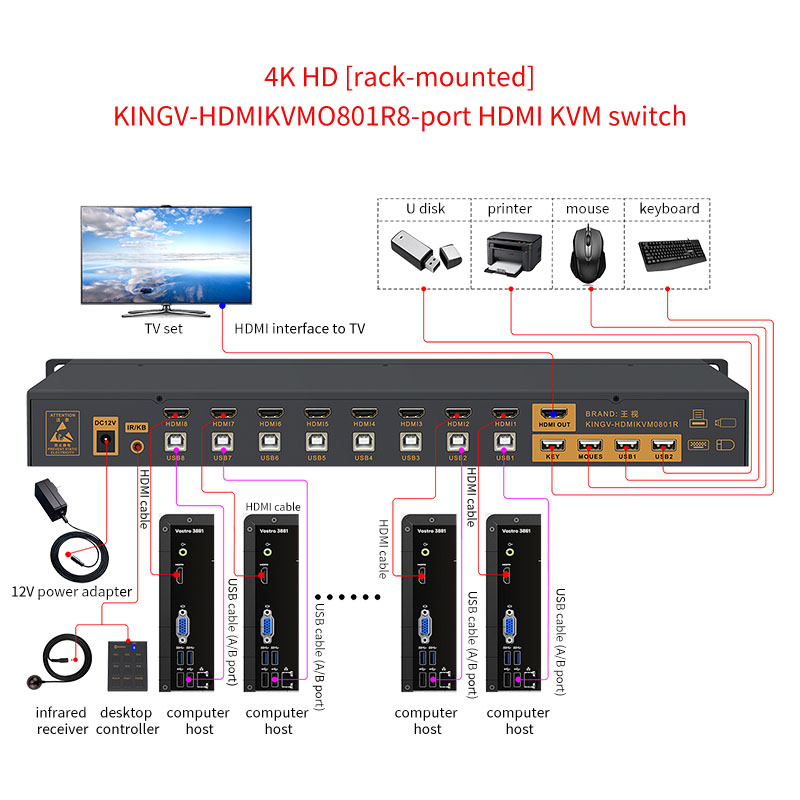

The KVM switch can completely simulate the computer keyboard and mouse signals that are powered on at the same time, allowing 8 hosts to share one set of mouse, keyboard, monitor, and USB.

Consult

Features Technical Indicators Overall Dimension

1. KVM switch HDMI 8 inputs and 1 output can switch HDMI signals and mouse keyboard + USB at the same time.

2. The KVM switch can switch video and mouse keyboard + USB devices by pressing buttons.

3. The KVM switch can switch video and mouse keyboard + USB devices through an external controller.

4. The KVM switch can switch video and mouse keyboard + USB devices through the remote control.

5. The gain of the 8 input signals can be adjusted individually to increase or decrease the amplification factor of the HDMI signal at will.

6. Support HDCP1.3 protocol, support HDMI1.4 protocol, the maximum resolution can reach 3840*2160_30Hz.

7. The 8-channel input signal is fully decrypted, can support 8-channel Blu-ray signal input at the same time, and can support any style of HDMI signal.

8. Automatically read EDID, suitable for any brand of display device.

9. FPGA programmable logic array circuit has more stable performance, fast operation speed and stable system.

10. Using high-speed digital switching technology, the image is clear, the video signal is stable, no jitter, and no snowflakes.

11. Compatible with HDMI version 1.3 and HDMI 1.4, compliant with HDCP standard, supporting signal timing reshaping, CEC, 36-bit true color technology.

12. The product has memory protection for on-site switching during power outage.

13. Support audio formats DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-AC3/DSD.

1. Number of HDMI ports: 8 input ports, 1 output port. (Supports resolution 4K, backward compatible)

2. Number of USB-A ports: 4 2.0. (Commonly used is the USB port on the computer host and the flat USB interface)

3. Number of USB-B type ports: 8 2.0. (Commonly used USB interface on printers, square USB interface)

4. Resolution: 800*600—1920*1080—1920*1200—3840*2160 (30Hz), 4K¬30Hz.

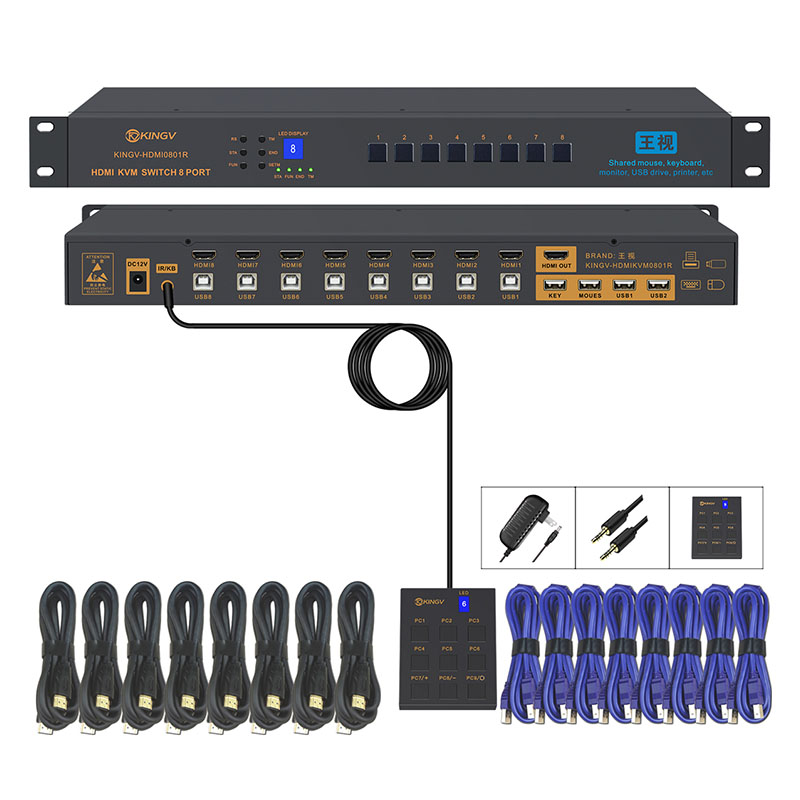

5. Switching method: local button switching, external controller switching, remote control switching.

6. DC power supply: 12V, 2A

7. Operating temperature: 0 ~ 50 °C

8. Storage temperature: -20 ~ 60 °C

9. Humidity: 0~80%, no condensation

10. Appearance size (mm): 483*140*45. 1U rack type

11. Weight: 3.3KG.

12. Material: all metal.

13. Product model: KINGV-HDMIKVM0801R.
