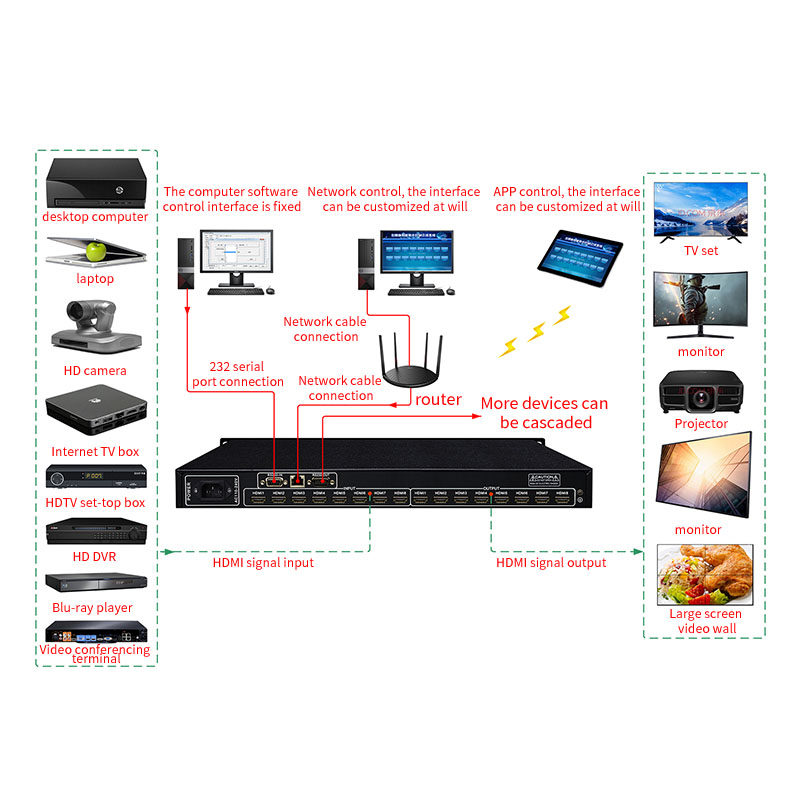

4K high-definition HDMI matrix 8 in 8 out control method:
1. Button control: The buttons on the front panel of the device can control all the actions of the matrix. (Standard)
2. Remote control: The device is equipped with a remote control, which can be used to control all the actions of the matrix. (Standard)
3. PC software control: Install the matrix-specific management software on the computer, and you can fully control all the actions of the matrix through the RS232 serial port. (Standard)
4. Network control: Install and run the matrix network-specific management software on the computer, and you can fully control all the actions of the matrix through the local area network. (Optional)
5. APP control: Install the APP software on the tablet computer and mobile phone. The software can be customized and edited, and all the actions of the matrix can be fully controlled through the WIFI connection. (Optional)
6. The underlying source program of the APP software is used on the computer: Run the underlying source program of the APP software on the computer. The software can be customized and edited, and all the actions of the matrix can be fully controlled through the local area network. (Optional)
7. Third-party control: The matrix can be controlled through other third-party devices, such as: central control, splicing device, integrated control device, etc.
The main features of the 4K high-definition HDMI matrix with 8 inputs and 8 outputs:
1. 8-way HDMI signal input, 8-way HDMI signal output, cross-switching.
2. HDCP decryption: Ours is 8-way full HDCP decryption, and all 8 inputs can receive blue-ray signals.
3. Automatically read and save EDID, suitable for display devices of all brands.
4. Support high-definition resolution 800*600---1920*1080_60Hz--3840*2160_30Hz, backward compatible, support 4K.
6. Aluminum brushed material panel, high-brightness blue-light LCD display.

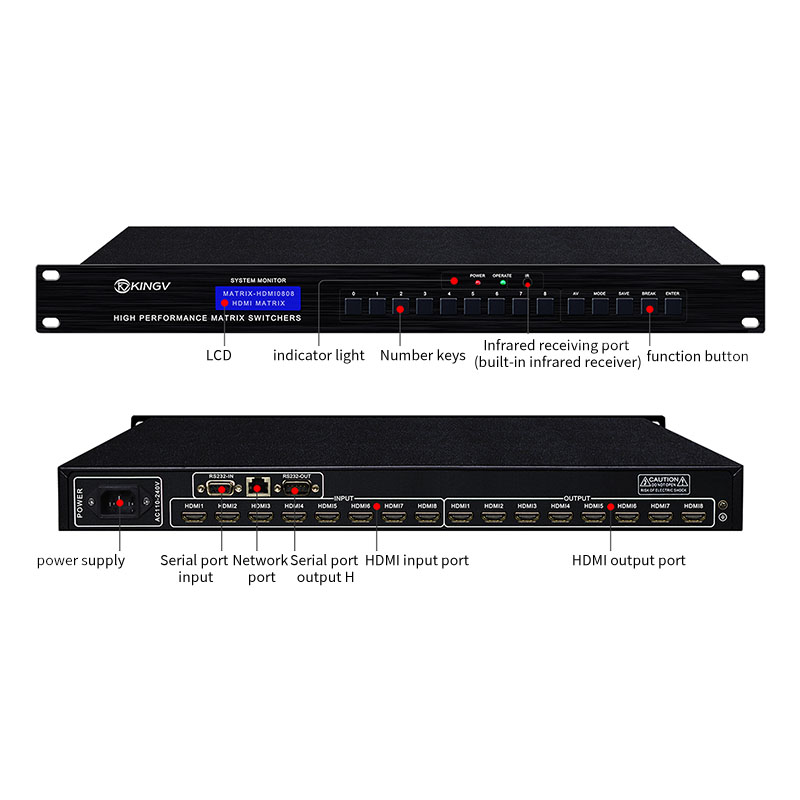

7. Wide power supply 110-240V, dual serial port plus network port setting.
8. Factory configuration control mode: computer software control, button control, remote control.
9. Both input and output have amplification function, using 24AWG standard cable, 4K input transmission distance can reach 15 meters, output transmission distance can reach 15 meters.
Using 24AWG standard cables, the 1080P input transmission distance can reach 20 meters, and the output transmission distance can reach 20 meters.
10. Professional processor, FPGA programmable logic array circuit, more stable performance, faster operation, and more stable system.
11. Adopting 13.6GHz high-bandwidth chip, high-speed digital switching technology, clear image, solve crosstalk, ghosting and tailing problems.
12. Support seamless integration of CMMAW technology and CCSEB power management technology.
13. Automatic EDID editing, fast reading speed.
14. Built-in round-robin switching function, built-in 16 groups of scene storage function, can be operated directly on the panel.
15. Support audio formats DTS-HD/Dolby-trueHD/LPCM7.1/DTS/DOLBY-AC3/DSD.
16. Unique TCP/IP network control management function, can be controlled through Ethernet. (optional)
17. Full SMD process, unique ESD electrostatic protection function.
18. The design adopts fault-tolerant technology and uses a communication interface circuit with high anti-interference ability to ensure the reliability of communication.
19. The product has on-site switching memory protection when power is off.
4K HD HDMI matrix 8 input 8 output specifications:
1. Power supply: 110VAC～240VAC, 50/60Hz, adaptive power supply.
2. Temperature: storage and use temperature: -20℃～+70°C.
3. Humidity: storage and use humidity: 10%～90%.
4. Mean time between failures: 70,000 hours.

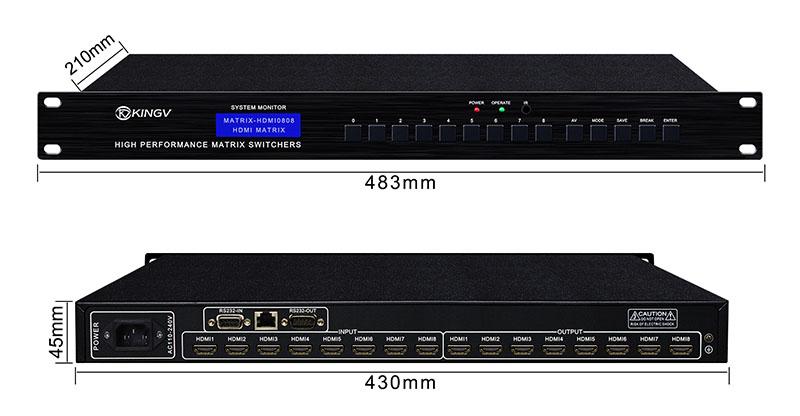

5. Product size: 483 * 210 * 45 (mm) (19-inch standard 1U chassis).
6. Weight: 3.4Kg.
7. Power consumption: 15W.
